Brand Name : Neardi
Model Number : LPA3399Pro
Place of Origin : Shanghai, China
MOQ : 1 piece
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 10000/pieces/mon
Delivery Time : 7 days
Packaging Details : 33.5×19×9 cm
SOC : RK3399Pro
Supplier Type : OEM/ODM
CPU : 2*A72 + 4*A53
GPU : Mail-G860 MP4
NPU : 3 TOPS
VPU : 4K/1080P
DDR : LPDDR4, 3GB/6GB (Optional)
eMMC : eMMC 5.1, 16GB/32GB/64GB/128GB
Working Temperature : -10 ~ 70℃
PCB Interface : B2B
OS : Android/Buildroot/Debian/Ubuntu
Embedded : Yes
Application : Medical Equipment/Networking and NAS
The LPA3399Pro Vehicle Embedded PC is a portable computing host developed based on the Rockchip RK3399Pro platform. It is designed for scenarios that require extensive visual computation. It has an integrated NPU computing unit with a computational power of 3.0TOPS, supporting a variety of algorithmic models. This product is a foundational device in AI scenarios, equipped with a rich set of hardware interfaces. Users only need to port the algorithms to this platform to quickly bring the product to market.
The LPA3399Pro Vehicle Embedded PC supports input from 5 AHD cameras and various depth cameras, making it suitable for products in machine vision and ADAS. AHD cameras are widely used in the automotive field. They employ coaxial transmission that can reach tens of meters and use industry-standard aviation connectors for stable, reliable, and easy-to-install connections.
The LPA3399Pro Vehicle Embedded PC integrates dual-band WIFI 802.11a/b/g/n/ac, BT5.0 low-power Bluetooth, GPS+BDdual-mode navigation, seven-mode global 4G communication, and a 9-axis motion sensor. It supports a variety of communication interfaces, including RS232, RS485, CAN, and 1000M Ethernet. The rich interfaces allow users to develop a range of excellent products.
Product Parameters
| Function | Description |
| CPU | RK3399Pro; a dual-core Cortex-A72 plus quad-core Cortex-A53 architectural processor. |
| GPU | Mali-T860MP4 GPU, supporting OpenGL ES 1.1/2.0/3.0/3.1, OpenVG 1.1, OpenCL, DirectX 11; supports AFBC (Advanced Frame Buffer Compression). |
| NPU | 3 TOPS computational power; supports 8-bit/16-bit operations; compatible with TensorFlow and Caffe models. |
| VPU | Capable of 4K VP9 and 4K 10-bit H265/H264 video decoding, up to 60fps at 1080P; multi-format video decoding (WMV, MPEG-1/2/4, VP8); 1080P video encoding, supporting H.264 and VP8 formats. |
| DDR | LPDDR4, 1GB/2GB/4GB/8GB(Optional) |
| eMMC | eMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional) |
| PMU | RK806 |
| OS | Android / Buildroot / Debian / Ubuntu |
| Hardware Interface | |
| Power input | DC 9V - 36V |
| USB | 2*Type-A USB3.0 HOST, 2*Type-A USB2.0 OTG |
| Display output | 1*Type-A HDMI 2.0 |
| Audio | φ3.5mm audio out and microphone input |
| Storage | Micro SD card with SDIO 3.0 protocol |
| Connectivity | 1*Uart,2*RS232,1*RS485 |
| Net work | 1*10/100/1000Mbps Ethernet Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac; BT V5.0 with BLE supported |
| Camera Interface | 5*AHD input up to 1920*1080@30fps per channel |
| Dimensions | L*W*H(mm) 200*120*57.7 |
| Operating Temperature | -10 ~ 70℃ |
| Weight | Approximately 1212g (excluding peripherals) |

| Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
| GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
| Repository: | https://gitlab.com/neardi-linux |
| Forum: | https://forum.neardi.com |
| Video Tutorials: | https://www.youtube.com/@neardichannels |

|   |

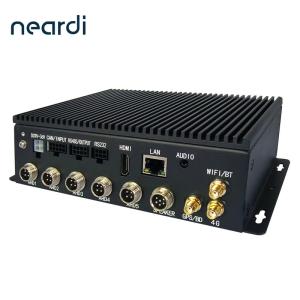

| Neardi Rugged Embedded PC Industrial Computer LPA3399Pro RK3399Pro Images |
